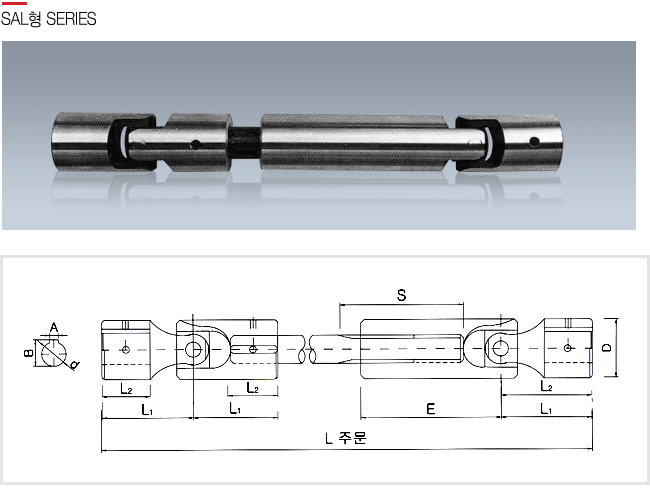

| (단위 : m/m) |
구 분 |
(kgf-m) |
(kgf-m) |
전장 |
MIN
작동
거리 |
d |
D |
L₁ |
L₂ |
E |
A×B |
S |
외경×내경 ×中×스프라인 |
MIN |
MAX |
SAL-10 |
3.0 |
7.5 |
167 |
345 |
+30 |
10 |
20 |
34 |
24 |
65 |
3 × 11.5 |
65 |
M1.0 × PA20" × NT8 |
SAL-12 |
4.5 |
12 |
206 |
385 |
+35 |
12 |
24 |
42 |
29 |
80 |
4 × 14.0 |
75 |
14 × 11 × 3 × 6 |
SAL-14 |
7.0 |
17.0 |
231 |
440 |
+40 |
14 |
28 |
47 |
32 |
90 |
5 × 16.5 |
80 |
16 × 13 × 3.5 × 6 |
SAL-16 |
10.0 |
25.0 |
256 |
480 |
+40 |
16 |
32 |
52 |
35 |
100 |
5 × 18.5 |
90 |
20 × 16 × 4 × 6 |
SAL-18 |
13.0 |
32.0 |
290 |
560 |
+40 |
18 |
36 |
60 |
39 |
110 |
6 × 21.0 |
110 |
20 × 16 × 4 × 6 |
SAL-20 |
18.0 |
45.0 |
301 |
575 |
+50 |
20 |
40 |
62 |
40 |
115 |
6 × 23.0 |
100 |
22 × 18 × 5 × 6 |
SAL-22 |
24.0 |
60.0 |
315 |
615 |
+50 |
22 |
44 |
65 |
42 |
120 |
6 × 25.0 |
105 |
25 × 21 × 6 × 6 |
SAL-25 |
30.0 |
80.0 |
335 |
675 |
+50 |
25 |
50 |
70 |
43 |
125 |
8 × 29.0 |
115 |
28 × 23 × 6 × 6 |
SAL-30 |
45.0 |
115.0 |
422 |
780 |
+60 |
30 |
60 |
89 |
54 |
155 |
8 × 34.0 |
150 |
34 × 28 × 7 × 6 |
SAL-35 |
55.0 |
180.0 |
475 |
970 |
+65 |
35 |
70 |
100 |
58 |
175 |
10 × 40.0 |
150 |
34 × 28 × 7 × 6 |
SAL-40 |
85.0 |
250.0 |
532 |
1,105 |
+75 |
40 |
80 |
114 |
67 |
190 |
12 × 46.0 |
160 |
M2.5 × PA20" × NT16 |
SAL-45 |
125.0 |
350.0 |
575 |
1,225 |
+75 |
45 |
90 |
125 |
74 |
200 |
14 × 52.0 |
170 |
M2.5 × PA20" × NT16 |
SAL-50 |
180.0 |
490.0 |
615 |
1,295 |
+90 |
50 |
100 |
135 |
80 |
210 |
14 × 57.0 |
170 |
M3.0 × PA20" × NT16 |
SAL-60 |
280.0 |
650. |
680 |
1,415 |
+90 |
60 |
120 |
150 |
85 |
230 |
18 × 69.0 |
185 |
M4.0 × PA20" × NT16 |
SAL-70 |
450.0 |
1,200.0 |
730 |
1,745 |
+110 |
70 |
135 |
160 |
92 |
250 |
20 × 80.0 |
200 |
M4.0 × PA20" × NT16 |
SAL-80 |
550.0 |
1,400.0 |
820 |
1,935 |
+130 |
80 |
160 |
180 |
110 |
280 |
22 × 91.0 |
220 |
M5.0 × PA20" × NT16 |
SAL-100 |
650.0 |
1,900.0 |
1,060 |
2,335 |
+130 |
100 |
175 |
250 |
135 |
310 |
28×124.0 |
240 |
M5.0 × PA20" × NT16 |
|
|
|
