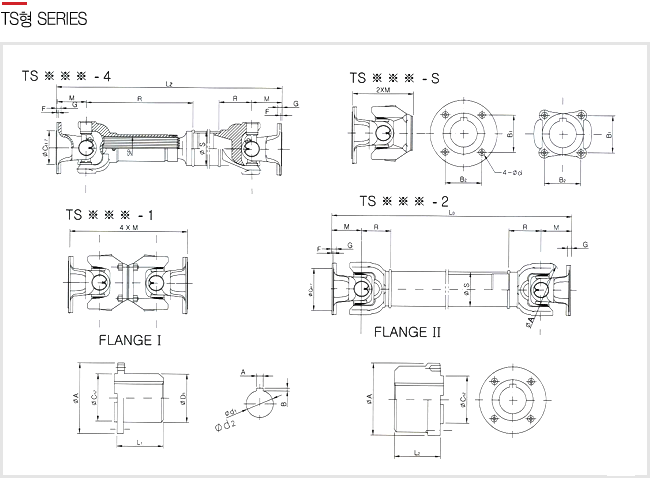

Universal joint size

20

30

45

70

90

160

250

350

허용토오크

Mb kgf/m

20

30

45

70

90

160

250

350

Mz kgf/m

28

41

63

100

125

220

320

470

허용작동각

β°

22

18

18

18

18

20

20

20

DIMESIONS

ø A

73

87

98

120

137

142

168

198

B₁

50

53

61

72

86.5

85

116

131

B₂

25

45

51

62

72.6

80

80

92

ø CH7

34

57

60

70

85

62

90

100

F

2.5

1.8

1.5

2.5

3.0

3.5

4.0

5.0

G

6.2

5.8

7.0

8.2

10.0

11.0

12.0

14.5

M

38

40

36.5

43

46

60

65

78

P

178

190

180

230

250

295

285

360

R

41

39

40

53

47

70

74

99

SP

25

25

35

35

40

45

48

60

ø S

30

48

50.8

70

76.3

90

90

115

ø d

8

8

10

10

12

12

14

16

Lz(MIN)

340

350

310

380

450

480

500

740

Spline Stroke

+

20

20

25

30

30

35

35

40

-

20

20

20

20

20

20

20

25

Flange

Ⅰ, Ⅱ

L₁

40

48

55

55

70

80

95

115

ø D₁

40

55

60

65

80

90

100

130

ø d₁

250

30

35

35

45

50

60

75

ø d₂

45

50

60

70

80

85

100

120

Bolt

SizeXℓ

M8X20

M8X20

M10X25

M10X25

M12X35

M14X45

M14X45

M16X48
