| (단위 : m/m) |

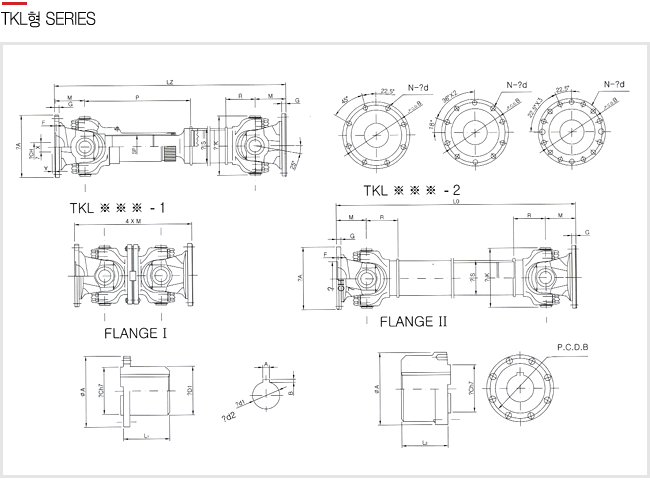

Universal joint size |
TKL-200 |
TKL-225 |
TKL-250 |
TKL-285 |
TKL-315 |
TKL-350 |
TKL-390 |
TKL-435 |
- |
190.50 |
190.55 |
190.60 |
190.65 |
190.70 |
190.75 |
190.80 |
허용토오크 |
Mb kgf/m |
1250 |
1250 |
1750 |
2650 |
3750 |
5350 |
7350 |
10000 |
Mz kgf/m |
1625 |
1625 |
2275 |
3440 |
4875 |
6955 |
9490 |
13000 |
허용작동각 |
β° |
15° |
DIMESIONS |
ø A |
200 |
225 |
250 |
285 |
315 |
350 |
390 |
435 |
pcd B |
172 |
196 |
218 |
245 |
280 |
310 |
345 |
385 |
ø CH7 |
95 |
140 |
140 |
175 |
175 |
220 |
250 |
280 |
F |
5 |
5 |
6 |
7 |
7 |
8 |
8 |
10 |
G |
15 |
15 |
18 |
20 |
22 |
25 |
28 |
32 |
M |
108 |
130 |
130 |
135 |
150 |
170 |
190 |
210 |
P |
377 |
377 |
470 |
509 |
640 |
705 |
775 |
840 |
R |
148 |
148 |
175 |
190 |
210 |
240 |
260 |
280 |
SP |
100 |
100 |
110 |
120 |
130 |
150 |
160 |
180 |
ø S |
120 |
120 |
140 |
160 |
190 |
215 |
244 |
267 |
ø K |
225 |
225 |
250 |
285 |
315 |
350 |
390 |
435 |
N |
8 |
8 |
8 |
8 |
8 |
10 |
10 |
10 |
ø d₁ |
14 |
16 |
18 |
20 |
22 |
22 |
24 |
27 |
Spline Stroke |
+ |
790 |
790 |
960 |
1030 |
1220 |
1360 |
1490 |
1620 |
- |
75 |
75 |
90 |
100 |
120 |
135 |
150 |
170 |
Flange |
Ⅰ |
ø d₁ |
70 |
90 |
100 |
110 |
120 |
130 |
140 |
150 |
ø D₁ |
130 |
160 |
180 |
200 |
215 |
240 |
270 |
300 |
L₁ |
105 |
135 |
150 |
165 |
180 |
195 |
210 |
225 |
Bolt |
SizeXℓ |
M16X50 |
M16X50 |
M18X60 |
M20X64 |
M22X70 |
M22X75 |
M24X85 |
M27X95 |
|
|
|
