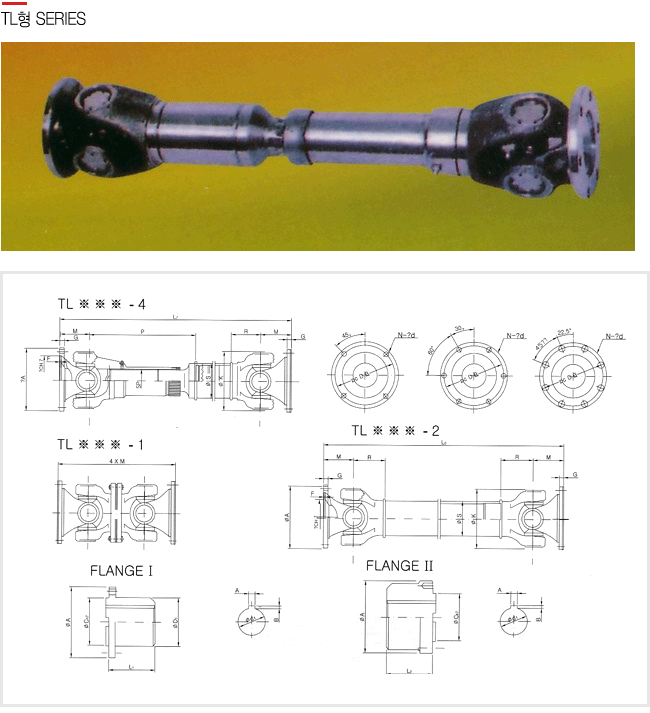

Universal joint size

TKL-58

TL-65

TL-75

TL-90

TL-100

TL-120

TKL-150

TL-160

TL-180

TKL-200

TL-225

373.20

373.20

273.30

287.00

287.10

287.20

287.30

287.30

287.40

287.40

287.40

허용토오크

Mb kgf/m

11

15

40

70

95

150

350

350

520

520

900

Mz kgf/m

15

25

55

90

125

185

480

480

670

670

1170

허용작동각

β°

30°

30°

30°

25°

25°

20°

20°

20°

22°

22°

22°

DIMESIONS

ø A

58

65

75

90

100

120

150

160

180

200

225

pcd B

47

52

62

74.5

84

101.5

130

140

155.5

175

196

ø CH7

30

35

42

47

57

75

90

100

110

125

140

F

1.5

2

2

2.5

2.5

2.5

3

4

3

5

5

G

3.5

4.5

5.5

6

7

8

10

10

12

14

16

M

32

35.5

40

45

46

60

80

80

80

80

108

P

127

142

169

188

217

330

335

335

355

355

450

R

36

36

45

58

55

65

75

75

95

95

115

SP

21

21

32

39

39

45

54

54

74

84

94

ø S

32

32

45

50.8

63.5

76.3

90

90

101.6

101.6

120

ø K

52

60

70

86

98

115

145

145

174

174

205

N

4

4

4

4

6

8

8

8

8

8

8

ø d

5

6

6

8

8

10

12

12

14

14

16

Spline Stroke

+

14

14

20

25

30

35

40

40

45

45

50

-

14

14

15

15

15

20

20

26

33

33

40

Flange

Ⅰ

ø d₁

20

25

30

35

40

50

60

70

80

85

100

ø D₁

35

40

50

55

64

80

105

110

125

130

160

L₁

30

40

48

55

63

80

90

110

125

140

160

Ⅱ

ø d₂

35

40

45

55

60

70

90

95

110

120

135

L₂

56

65

70

90

90

110

140

160

180

180

220

Bolt

SizeXℓ

M5×14

M6×18

M6×20

M8×25

M8×25

M10×30

M12×40

M12×40

M14×45

M14×45

M16×50
