| (단위 : m/m) |

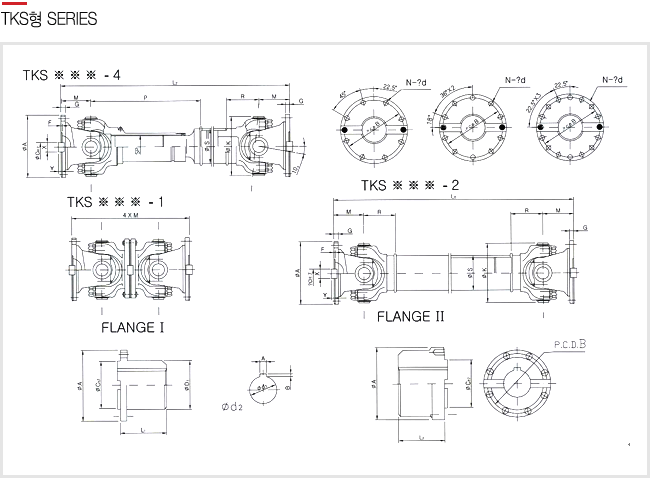

Universal joint size |
TKS-200 |
TKS-225 |
TKS-250 |
TKS-285 |
TKS-315 |
TKS-350 |
TKS-390 |
TKS-350 |
TKS-390 |
TKS-435 |
- |
192.50 |
192.55 |
192.60 |
192.65 |
192.70 |
192.75 |
192.80 |
192.85 |
192.90 |
허용토오크 |
Mb kgf/m |
- |
1850 |
2600 |
3800 |
550 |
8000 |
11000 |
15000 |
20000 |
28000 |
Mz kgf/m |
80 |
2405 |
3380 |
4940 |
7150 |
1040 |
14300 |
19500 |
26000 |
36400 |
허용작동각 |
β° |
10° |
DIMESIONS |
ø A |
200 |
225 |
250 |
285 |
315 |
350 |
390 |
435 |
480 |
550 |
pcd B |
172 |
196 |
218 |
245 |
280 |
310 |
345 |
385 |
425 |
492 |
ø CH7 |
95 |
105 |
105 |
125 |
130 |
155 |
170 |
190 |
205 |
250 |
F |
5 |
5 |
6 |
7 |
8 |
8 |
8 |
10 |
12 |
12 |
G |
20 |
20 |
25 |
27 |
32 |
35 |
40 |
42 |
47 |
50 |
M |
135 |
130 |
135 |
150 |
170 |
185 |
205 |
235 |
265 |
290 |
P |
420 |
475 |
590 |
610 |
740 |
760 |
880 |
930 |
1035 |
1110 |
R |
160 |
175 |
190 |
210 |
240 |
260 |
280 |
330 |
305 |
350 |
SP |
100 |
100 |
100 |
130 |
150 |
170 |
170 |
209 |
209 |
240 |
ø S |
140 |
152 |
170 |
200 |
230 |
245 |
273 |
318 |
355.6 |
406.4 |
ø K |
200 |
225 |
250 |
285 |
315 |
350 |
390 |
435 |
480 |
550 |
N |
8 |
8 |
8 |
8 |
10 |
10 |
10 |
16 |
16 |
16 |
ø d |
15 |
17 |
19 |
21 |
23 |
23 |
25 |
28 |
31 |
31 |
X |
40 |
32 |
40 |
40 |
40 |
50 |
70 |
80 |
90 |
100 |
Y |
10 |
9 |
12.5 |
15 |
15 |
16 |
18 |
20 |
22.5 |
22.5 |
Lz(MIN) |
850 |
965 |
1035 |
1180 |
1375 |
1485 |
1620 |
1795 |
1950 |
2120 |
Spline Stroke |
+ |
80 |
85 |
90 |
120 |
135 |
150 |
150 |
170 |
190 |
210 |
Flange |
Ⅰ |
ø d₁ |
70 |
90 |
100 |
110 |
120 |
130 |
140 |
150 |
165 |
220 |
ø D₁ |
130 |
160 |
180 |
200 |
215 |
240 |
270 |
300 |
365 |
430 |
L₁ |
105 |
135 |
150 |
165 |
180 |
195 |
210 |
225 |
250 |
330 |
Bolt |
SizeXℓ |
M16X60 |
M16X60 |
M18X75 |
M20X80 |
M22X90 |
M22X100 |
M24X100 |
M27X120 |
M30X130 |
M30X135 |
|
|
|
